Stand Off Rails

Stock No. DMS 1005 SOR/S

This over the board mount can be used to secure interactive whiteboards over an existing chalkboard or whiteboard.

Able to accommodate 1-3/4” to 4” deep chalk tray or board surround
Able to span chalkboards with heights between 45” to 67-1/2”
400 pound carry capacity with proper hardware and anchoring
VESA compatible
Designed to mount under the chalk tray and above the board, mounting directly to wall surface
Can be mounted to block, wood, drywall, and other wall surfaces using appropriate hardware for applications (not included)
End brackets can be mounted inward or outward for maximum flexibility and aesthetics
Rigid 6061 grade tempered aluminum construction
All assembly hardware included
Vibration dampeners included
Mount has rounded corners for additional safety
Durable gray powder coating

0 Comments

Inline Feedbacks

View all comments

Stand Off Rails Accessories

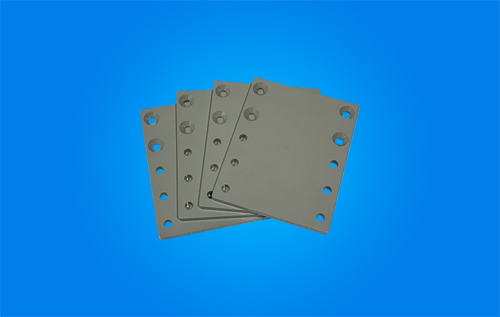

DMS101100

Extension plates allow for mounting over chalkboards with trays larger than 4” up to 7”

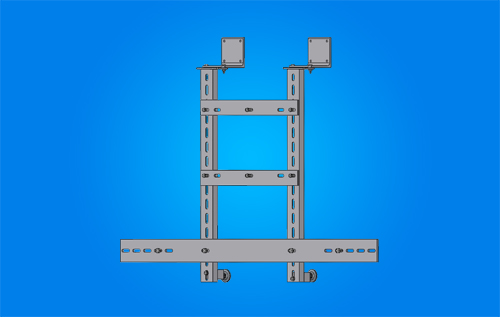

DMS100600

The SOR/S System mount can be used in conjunction with an SOR/S to mount projectors over the boards

	Stand Off Rails DMS 1005 SOR/S	Over the Board Mount DMS 1004 OBM-100-UV
Color
Color	Powder-Coated Gray	Powder-Coated White
Height Adjustment Screws
Height Adjustment Screws	Perpendicular to Board	Parallel to Board
Vibration Dampeners
Vibration Dampeners	Included	Not Included
Board Mounting Slot Width
Board Mounting Slot Width	0.39" (up to 8mm or 5/16")	0.28" (up to 6mm or 1/4")
VESA Compliant
VESA Compliant	Yes	Yes
Weight Capacity
Weight Capacity	400 lbs.	400 lbs.
Height Span
Height Span	up to 67 1/2"	up to 67 1/2"
